ADVANTAGES
- Made from 100% post industrial/consumer recycled fibers
- Synthetic fiber construction is mold and mildew resistant
- Provides cushioned comfort and excellent noise reduction
- Eliminates minor subfloor imperfections
- Moisture barrier film to lock out moisture
- Suitable for radiant heat flooring systems
- 100% recyclable, environmentally friendly, non allergenic and odorless
APPROVED SUBSTRATES
- Dry, completely cured concrete (at least 14 days old with HVAC operating)
- 3/4" interior plywood or OSB flooring
- Waterproofing and crack-isolation membranes
- Cement backer units
FLOOR PREPARATION
- Subfloor should be clean and dry
- In geographic areas where concrete subfloors are subject to excessive moisture, a calcium chloride moisture test is required. Vapor emission readings in excess of 4 lbs. per 1,000 square feet in 24 hrs will require additional protection such as concrete sealant or polyethylene sheeting.
QUICK AND EASY INSTALLATION
requires no additional seaming tape, cuts with a knife

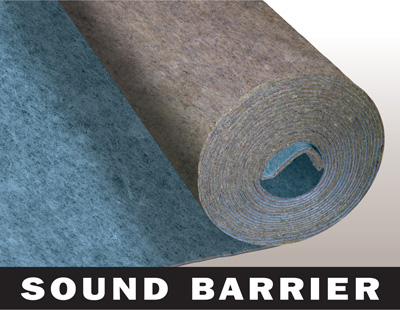

- Install Sound Barrier with film UP against subfloor.
- Roll out underlayment with tape strip next to wall. Roll out next row in same manner butting underlayment close to first row ( do not overlap ). Tape all seams with a moisture resistant sealing tape.
- Install flooring according to the manufacturer's installation instructions
*NOT for glue down installations
PACKAGING
Available in 3' x 33.34' (100 sq. ft.) rolls
TECHNICAL DATA
100% recycled post industrial/consumer fiber
Thickness — .120", 3 mm
Density — LBS
Weight — 2.08 oz/sq.ft.
Moisture Barrier — Yes
Thermal Resistance — TBD
Compression Resistance @ 25% — 4.6 psi
Flammability Rating — Passes Federal Flammability Standards DOC-FF-1-70
Radiant Panel — ASTM E648 Class 1
Product Emissions — Exceeds VOC emissions requirements, environmentally friendly
SOUND ABSORPTION PROPERTIES
Impact Insulation Class (IIC) This method is to measure the impact sound transmission performance of a floor-ceiling assembly (sound transmission through the floor)
| IIC | Flooring | Sub-Floor |
69 | Laminate / Engineered | 6" concrete with ceiling assembly |
Sound Transmission Class (STC) This method is to measure the air-borne sound insolating property of a partition element for effectiveness in blocking sound
| STC | Flooring | Sub-Floor |
| 66 | Laminate / Engineered | 6" concrete with ceiling assembly |
