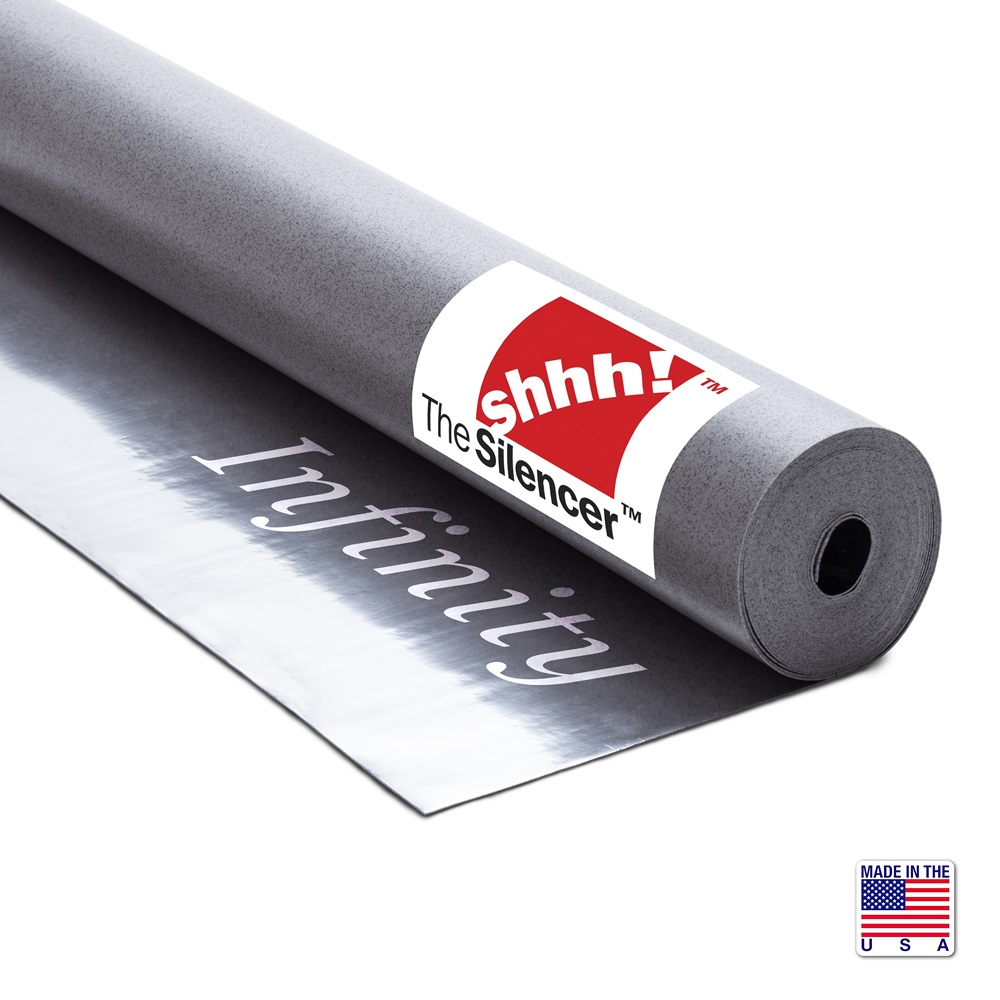

MUST HAVE: ECO SILENCER INFINITYFirm cushion, enhanced joint support, superior acoustics and unparalleled protectionfrom moisture’s harmful effects. The silver film “BLOCKS OUT” the moisture from the subfloor that could damage the flooring.
• Eco Silencer Infinity is made with high-density polyurethane foam using rapidly renewable resources (soybean polyols and vegetable oils)
• Suitable for floating LVT, WPC, SPC, Hybrid resilient floors, plus glue down LVT, floating laminates, glue down and nail downengineered wood, bamboo wood and nail down solid hardwood.• Approved for use with pad-attached flooring.
• Contains an anti microbial treatment that ensures protection from the growth of unwanted microbes and resists mold and mildew
• Crushpruf™ technology resists indentation that enables your floors to perform to its fullest potential and last a lifetime
• Eliminates minor subfloor imperfections
• Offers the industry’s best limited lifetime warranty
• Suitable for radiant heat flooring systems
• This product exceeds ASTM test for compression strength required for some vinyl plank manufacturers
• Suitable for floating LVT, WPC, SPC, Hybrid resilient floors, plus glue down LVT, floating laminates, glue down and nail downengineered wood, bamboo wood and nail down solid hardwood.• Approved for use with pad-attached flooring.
• Contains an anti microbial treatment that ensures protection from the growth of unwanted microbes and resists mold and mildew
• Crushpruf™ technology resists indentation that enables your floors to perform to its fullest potential and last a lifetime
• Eliminates minor subfloor imperfections
• Offers the industry’s best limited lifetime warranty
• Suitable for radiant heat flooring systems
• This product exceeds ASTM test for compression strength required for some vinyl plank manufacturers
GREENGUARD Gold Certification offers stricter certification criteria, considers safety factors to account for sensitive individuals (such as children and the elderly), and ensures that a product is acceptable for use in environments such as schools and healthcare facilities. It is referenced by both The Collaborative for High Performance Schools (CHPS) and the Leadership in Energy and Environmental Design (LEED) Building Rating System.
| |
| |
• Eco Silencer Infinity is made with high-density polyurethane foam using rapidly renewable resources (soybean polyols and vegetable oils)
• Suitable for floating LVT, WPC, SPC, Hybrid resilient floors, plus glue down LVT, floating laminates, glue down and nail down
engineered wood, bamboo wood and nail down solid hardwood.
• Approved for use with pad-attached flooring.
• Contains an anti microbial treatment that ensures protection from the growth of unwanted microbes and resists mold and mildew
• Crushpruf™ technology resists indentation that enables your floors to perform to its fullest potential and last a lifetime
• Eliminates minor subfloor imperfections
• Offers the industry’s best limited lifetime warranty
• Suitable for radiant heat flooring systems
• This product exceeds ASTM test for compression strength required for some vinyl plank manufacturers

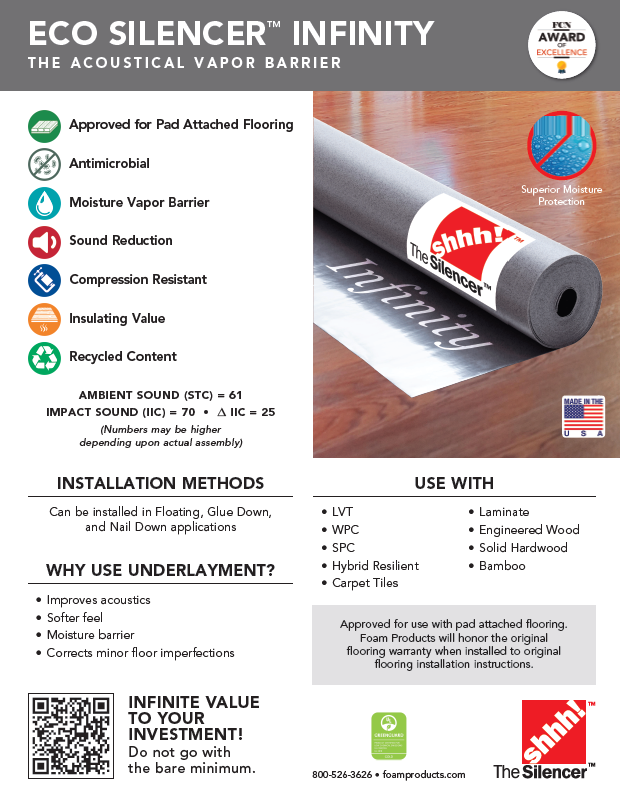

Eco Silencer Infinity
Installation Instructions
Approved Subfloors
Dry, completely cured concrete (at least 21 days old with HVAC operating)
¾” interior plywood, OSB flooring, and gypcrete (must be primed before glue down)
Cement backer boards, crack isolation membranes
Existing non-damaged hard surface flooring such as tile, wood, and sheet vinyl
Floor Preparation
Subfloor must be clean and dry. Any existing installed flooring must be secure to the floor and non-damaged.
Follow the flooring manufactures installation instructions for additional preparation.
Quick and Easy Installation
Install the Eco Silencer Infinity with the film side UP
Over concrete subfloors – MUST tape the seams to “BLOCK” the moisture vapor
Over wood joist subfloors – Do NOT tape the seams so any moisture vapor can dissipate.
For floating and nail down installations: roll out the underlayment next to the wall. Roll out the next row in the same manner butting the underlayment to the first row (do not overlap). On concrete subfloors -Tape the seams. On wood joist subfloors – Do NOT tape the seams.
For double glue down installations: Vinyl plank flooring - use a pressure sensitive acrylic adhesive on the subfloor. It is recommended when glueing down vinyl plank, install underlayment with the silver film down against the subfloor to eliminate the silver film from showing through any slight gapping that occurs with vinyl plank expansion and contraction. Wood based flooring – use a urethane or similar bond strength adhesive on the subfloor. Use a 1/16” – 3/32” towel and spread a thin coat. Allow to flash before rolling out the underlayment as described above. Roll with a 75-100 lb. roller to smooth out any air pockets and to secure a good bond to the adhesive.
Install the flooring over the underlayment per the flooring manufacturer’s installation instructions.
DESIGNED, APPROVED, WARRANTED FOR USE WITH OR WITHOUT PAD ATTACHED FLOORING
Foam Products Corporation warrants and guarantees the performance of Eco Silencer Infinity underlayment all brands of LVT, SPC, WPC, hybrid resilient flooring, laminate, engineered, bamboo, solid hardwood flooring, and carpet tiles.
100% High-Density polyurethane foam underlayment blended with post
consumer recycled granulated rubber tires and bonded with a silver foil
film to “BLOCK” out moisture vapor.
Thickness.......................................................................................... 1.2mm
Density....................................................................................... 30 lbs./cu.ft.
Weight ........................................................................................ 2.1 oz/sq.ft.
Antimicrobial......................................................................Contains treatment
Thermal Resistance...................................................................... R-Value 0.068
Compression Resistance ASTM D3676.............................................. 77.8 psi
Compression Set ASTM D3574 ............................................................ 2.4 %
Indoor Air Quality ..................................... GreenGuard Gold Certified UL 2818
Flammability Rating ..................................................................Passes Federal
Flammability Standards DOC-FF-1-70
Smoke Density.....................................................................Passes, 110 max
Product Emissions.......................................................Exceeds VOC emissions
requirements, environmentally friendly
| |
