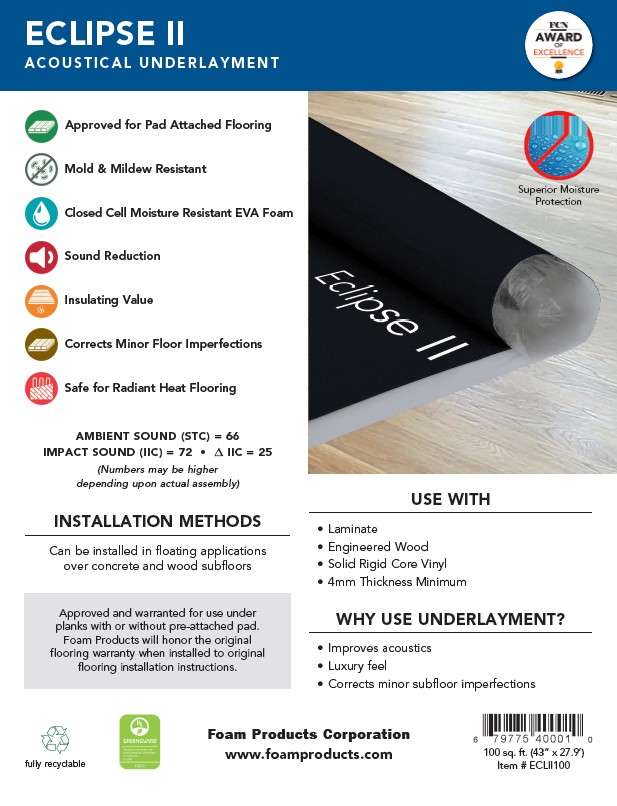

Eclipse II acoustical underlayment is suitable for floating Laminate, Engineered wood, (solid rigid core vinyl WPC, SPC, EVP) plank) flooring installations. Offers the best support, moisture protection and sound absorption for your floors.
Approved and warranted for use under planks with or without pre-attached pad.
- New and Improved dense closed cell moisture resistant EVA foam rubber
- Provides excellent moisture protection
- Self sealing lip and tape system for easy installation
- Mold and mildew resistant
- Suitable for use over concrete and wood subfloors
- Safe for use with radiant heat flooring systems
- Reduces floor noise by providing excellent sound absorption
- Limited Lifetime Warranty (equal to the warranted life of the flooring)
- Floating installations (not for glue down applications)
GREENGUARD Gold Certification offers stricter certification criteria, considers safety factors to account for sensitive individuals (such as children and the elderly), and ensures that a product is acceptable for use in environments such as schools and healthcare facilities. It is referenced by both The Collaborative for High Performance Schools (CHPS) and the Leadership in Energy and Environmental Design (LEED) Building Rating System.
| |
- Reduces floor noise by providing excellent sound absorption
- Provides cushioned comfort under laminate and floating wood floors
- The Eclipse II has high density and compression resistance properties that enable your floor to perform to its fullest potential and last a lifetime
- The moisture barrier film and tape strip combine to lock out moisture and allow for quick and easy installation
- Eliminates minor subfloor imperfections
- The Eclipse II adds insulation value with an R-value of .29
- Suitable for use with radiant heat flooring systems
- 100% recyclable, environmentally friendly, non allergenic and odorless
APPROVED SUBSTRATES
- Dry, completely cured concrete (at least 14 days old with HVAC operating)
- 3/4" interior plywood or OSB flooring
- Waterproofing and crack-isolation membranes
- Cement backer units
- Subfloor surface must be clean and dry before installation.
- Start on a corner of room wall. Unroll Eclipse II underlayment (film side down) over the subfloor.
Be sure tape strip side is next to the wall and overlapping film lip is toward the open room. - Roll out next row in the same manner butting foam close to first row and covering overlapping plastic film lip.
Do not overlap foam pad just the overlapping plastic film lip. - Remove tape liner and secure the overlapping plastic film lip to it. Continue with installation.
Seal all open seams with aggressive adhesive plastic tape.
- Install flooring per manufacturer's instructions.
INSTALLATION GUIDE NOTEIn geographic regions where concrete slabs may be subject to higher moisture levels, a calcium chloride test is required. Vapor emission readings in excess of 3 lbs/1000sf in less than 24 hours will require additional protection such as a concrete sealant, moisture abatement, or 6 mil poly-ethylene sheeting. (please follow flooring OEM's instructions verbatim with regards to subfloor prep). It is mandatory to properly prep the subfloor to meet/exceed OEM installation instructions since the maximum value of most OEMs is 3 lbs MVTR with regards to adding an extra moisture abatement before putting down the underlayment (if on grade or below grade) and then the flooring product. Since we offer the industry's best warranty and track record and are willing to replace another company's floor parts and labor should our product fail, a properly prepared subfloor that meets/ exceeds every major OEMs subfloor prep protocol is mandatory. New construction installations should be performed only after the building is completely enclosed and the climate control system is in operation for a minimum of two weeks.
In geographic regions where concrete slabs may be subject to higher moisture levels, a calcium chloride test is required. Vapor emission readings in excess of 3 lbs/1000sf in less than 24 hours will require additional protection such as a concrete sealant, moisture abatement, or 6 mil poly-ethylene sheeting. (please follow flooring OEM's instructions verbatim with regards to subfloor prep). It is mandatory to properly prep the subfloor to meet/exceed OEM installation instructions since the maximum value of most OEMs is 3 lbs MVTR with regards to adding an extra moisture abatement before putting down the underlayment (if on grade or below grade) and then the flooring product. Since we offer the industry's best warranty and track record and are willing to replace another company's floor parts and labor should our product fail, a properly prepared subfloor that meets/ exceeds every major OEMs subfloor prep protocol is mandatory. New construction installations should be performed only after the building is completely enclosed and the climate control system is in operation for a minimum of two weeks. 100% closed cell moisture resistant EVA foam rubber
Thickness — .070”
Weight — 5.5 lbs per roll
Moisture Protection — closed cell foam
Thermal Resistance — R-Value .29
Compression Resistance ASTM D3575 — 21.1 psi
Compression Set ASTM D3574 — 16.3%
Thickness — .070”
Weight — 5.5 lbs per roll
Moisture Protection — closed cell foam
Thermal Resistance — R-Value .29
Compression Resistance ASTM D3575 — 21.1 psi
Compression Set ASTM D3574 — 16.3%
Available in 43" x 27.9' (100 sq. ft.) rolls and 43" x 279' (1000 sq. ft.) contractor size rolls.
This method is to measure the impact sound transmission performance of a floor-ceiling assembly (sound transmission through the floor)
| IIC | Flooring | Sub-Floor |
| 72 | Laminate | 6" concrete with ceiling assembly |
| 72 | Engineered Wood | 6” concrete with ceiling assembly |
| 66 | WPC | 6” concrete with ceiling assembly |
| 53 | WPC | 6” concrete NO ceiling assembly |
Sound Transmission Class (STC)
This method is to measure the air-borne sound insolating property of a partition element for effectiveness in blocking sound
| STC | Flooring | Sub-Floor |
| 66 | Laminate | 6” concrete with ceiling assembly |
| 66 | Engineered Wood | 6” concrete with ceiling assembly |
| 60 | WPC | 6” concrete with ceiling assembly |
| 50 | WPC | 6” concrete NO ceiling assembly |
