Premium PE Foam

Premium PE Foam

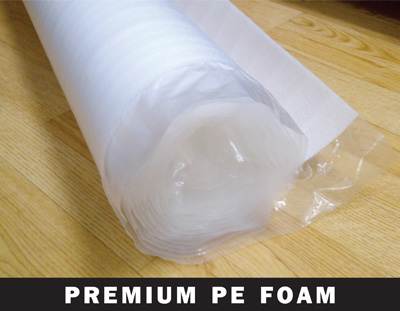

Premium PE Foam Underlayment For Laminate and
Floating Wood Floors with Moisture Barrier
  • The moisture barrier film and tape strip combine to lock out moisture and allow for quick and easy installation
  • Provides cushioned comfort under laminate and floating wood floors
  • Eliminates minor subfloor imperfections
  • Suitable for use with radiant heat flooring systems
  • 100% recyclable, environmentally friendly
  • Naturally resistant to mold and mildew
  • Non allergenic and odorless
APPROVED SUBSTRATES
  • Dry, completely cured concrete (at least 14 days old with HVAC operating)
  • 3/4" interior plywood or OSB flooring
  • Waterproofing and crack-isolation membranes
  • Cement backer units
FLOOR PREPARATION
  • Subfloor should be clean and dry
  • In geographic areas where concrete subfloors are subject to excessive moisture, a calcium chloride moisture test is required. Vapor emission readings in excess of 3 lbs. per 1,000 square feet in 24 hrs will require additional protection such as concrete sealant or polyethylene sheeting.
QUICK AND EASY INSTALLATION
requires no additional seaming tape, cuts with a knife
  1. Roll out underlayment with tape strip next to wall. Roll out next row in same manner butting underlayment close to first row ( do not overlap ) and covering the moisture barrier film. Remove the tape strip and secure the overlapping moisture barrier film.
  2. Install flooring according to the manufacturer's installation instructions
    *NOT for glue down installations
PACKAGING
Available in 4' x 25' (100 sq. ft.) rolls and 4' x 250 (1000 sq. ft.) contractor size rolls
TECHNICAL DATA
100% polypropylene closed cell foam
Thickness — .080"
Weight — 2 lbs. per roll
Moisture Barrier — with lip and tape sealing system
SOUND ABSORPTION PROPERTIES
Impact Insulation Class (IIC) This method is to measure the impact sound transmission performance of a floor-ceiling assembly (sound transmission through the floor)
IICFlooringSub-Floor
61Laminate/Engineered Wood6" concrete with ceiling assembly
54Laminate/Engineered Woodwood joist with ceiling assembly
