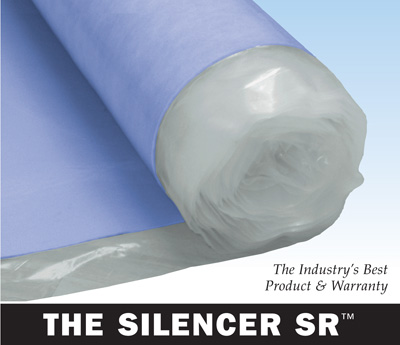

The Silencer SR™ Acoustical Underlayment with Moisture Barrier For Laminate and Floating Wood Floors
Silencer SR
  • Reduces floor noise by providing excellent sound absorption
  • Exceeds Air Quality and Flammability standards
  • 100% recyclable and environmentally friendly
  • Contains ultra•fresh anti microbial treatment
  • Quick and easy installation (no additional seaming tape needed)
  • Eliminates minor subfloor imperfections
  • Adds thermal value and suitable for use with radiant heat flooring
  • GREENGUARD Gold Certified.
    GREENGUARD Gold Certification offers stricter certification criteria, considers safety factors to account for sensitive individuals (such as children and the elderly), and ensures that a product is acceptable for use in environments such as schools and healthcare facilities. It is referenced by both The Collaborative for High Performance Schools (CHPS) and the Leadership in Energy and Environmental Design (LEED) Building Rating System.
Silencer SR™ is suitable for all Floating laminates, engineered and hardwood flooring installations.
Offers the best support, moisture protection and sound absorption for your floors.


ADVANTAGES
  • Reduces floor noise by providing excellent sound absorption
  • Provides cushioned comfort under laminate and floating wood floors
  • The Silencer SR™has high density and compression resistance properties that enable your floor to perform to its fullest potential and last a lifetime
  • The moisture barrier film and tape strip combine to lock out moisture and allow for quick and easy installation
  • Eliminates minor subfloor imperfections
  • Contains ultra•fresh anti-microbial which resists mold, mildew, and bacteria
  • The Silencer SR™ adds insulation value with an R-value of .205
  • Suitable for use with radiant heat flooring systems
  • 100% recyclable, environmentally friendly, non allergenic and odorless
APPROVED SUBSTRATES
  • Dry, completely cured concrete (at least 14 days old with HVAC operating)
  • 3/4" interior plywood or OSB flooring
  • Waterproofing and crack-isolation membranes
  • Cement backer units
FLOOR PREPARATION
  • Subfloor should be clean and dry
  • In geographic areas where concrete subfloors are subject to excessive moisture, a calcium chloride moisture test is required. Vapor emission readings in excess of 4 lbs. per 1,000 square feet in 24 hrs will require additional protection such as concrete sealant or polyethylene sheeting.
INSTALLATION Quick and easy installation* – requires no additional seaming tape, cuts with a knife
  1. Install The Silencer SR™ with film DOWN on subfloor
  2. Roll out underlayment with tape strip next to wall. Roll out next row in same manner butting underlayment close to first row ( do not overlap ) and covering the moisture barrier film. Remove the tape strip and secure the overlapping moisture barrier film.
  3. Install flooring according to the manufacturer's installation instructions
    *NOT for glue down installations
PACKAGING
  • Available in 3' x 33.34' (100 sq. ft.) rolls and 6' x 75' (450 sq. ft.) contractor size rolls
TECHNICAL DATA
100% Synthetic SBR Rubber foam underlayment with attached polypropylene film
Thickness — .075"
Density — 14 LBS
Weight — 2.0 oz/sq.ft.
Moisture Barrier — with lip and tape sealing system
Antimicrobial Treatment — ultra•fresh
Thermal Resistance — R-Value .205
Compression Resistance @ 25% — 10.6 psi
Compression Set @ 25% — 20%
Flammability Rating — Passes Federal — Flammability Standards DOC-FF-1-70
Smoke Density — Passes, 85 max
Product Emissions — Exceeds VOC emissions requirements, environmentally friendly
SOUND ABSORPTION PROPERTIES
Impact Insulation Class (IIC) This method is to measure the impact sound transmission performance of a floor-ceiling assembly (sound transmission through the floor)
IIC – Flooring – Sub-Floor
70 – Laminate/Engineered – 6" concrete with ceiling assembly
59 – Hardwood – 6" concrete with ceiling assembly
Sound Transmission Class (STC) This method is to measure the air-borne sound insolating property of a partition element for effectiveness in blocking sound
STC – Flooring – Sub-Floor
71 – Laminate/Engineered – 6" concrete with ceiling assembly
53 – Hardwood – 6" concrete with ceiling assembly
Delta IIC The db rating difference between a floor measured with an underlayment and with no underlayment
Δ IIC 22

ultra•fresh is a registered trademark of Thomson Research Associates Inc.
